Telephone Line Tester (Wire Pair Finder) REBEL RB-806R
The REBEL RB-806R telephone line tester is a versatile tool that will work well in both professional and home applications. Thanks to its advanced functions, it allows you to precisely locate wires, test telephone and network cables and check the continuity of wires, which makes it an indispensable tool in the work of telecommunications technicians and electricians.
Device Features
The RB-806R allows you to locate the cables you are looking for, which is extremely useful during the installation and maintenance of cable systems. The tester also offers a DC voltage indicator that warns of dangerous voltage in the tested wires. The device allows for thorough testing of telephone and network line cables, as well as checking the continuity of wires, which helps in quick diagnosis of problems.
Main Features

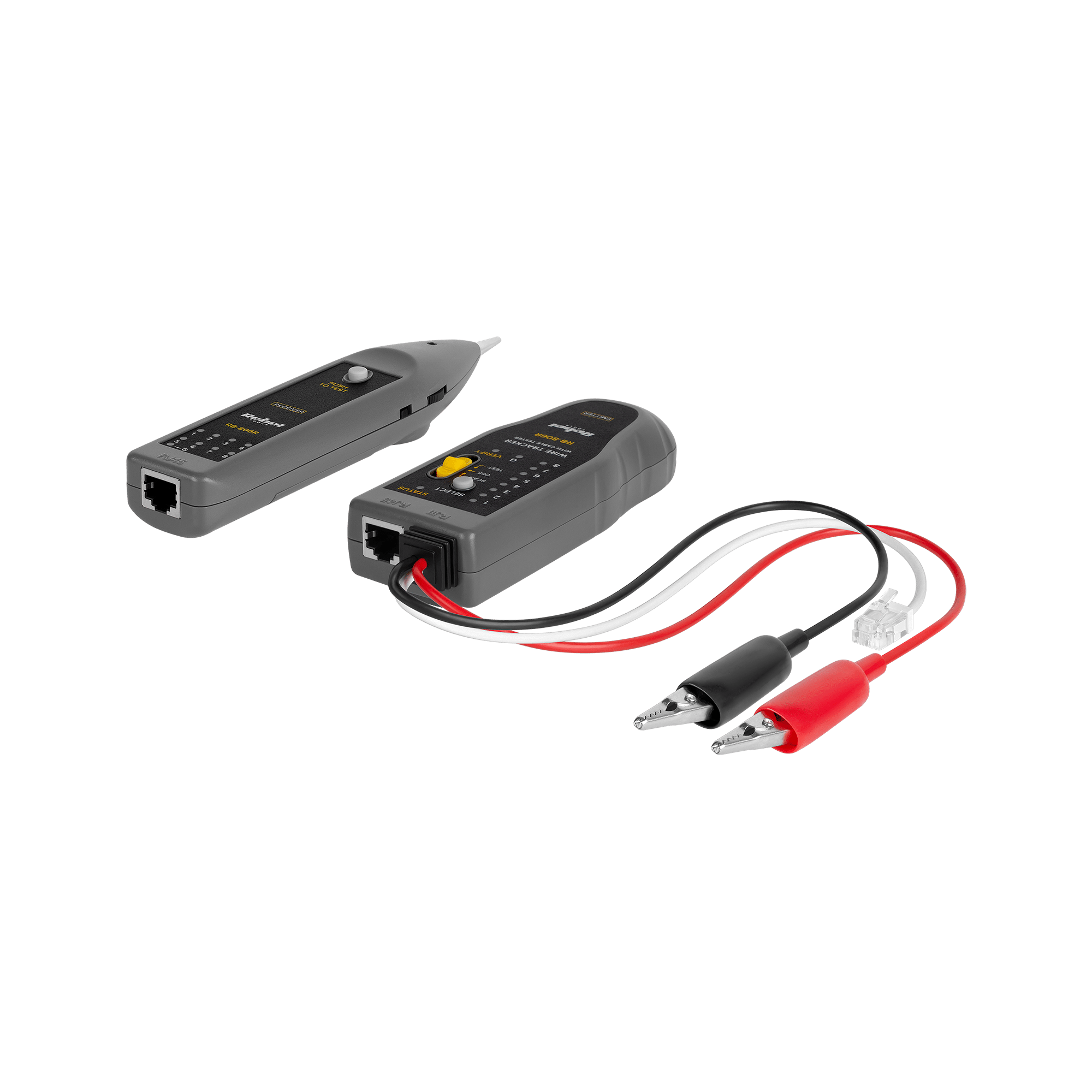

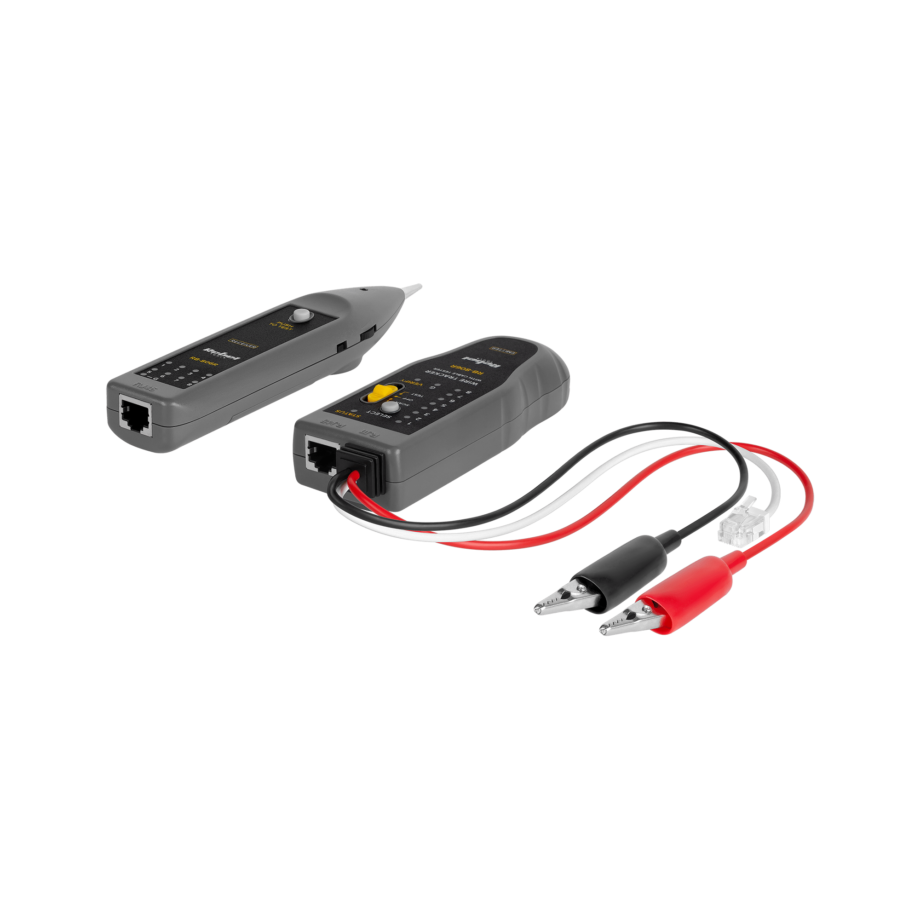

The tester is equipped with two crocodile connectors and an RJ11 connector, which allows easy connection to various types of wires. The built-in speaker and the receiver’s work light increase the comfort of work, especially in poorly lit areas. Additionally, the low battery indicator ensures that you will never be surprised by a sudden discharge of the device.
Complete set

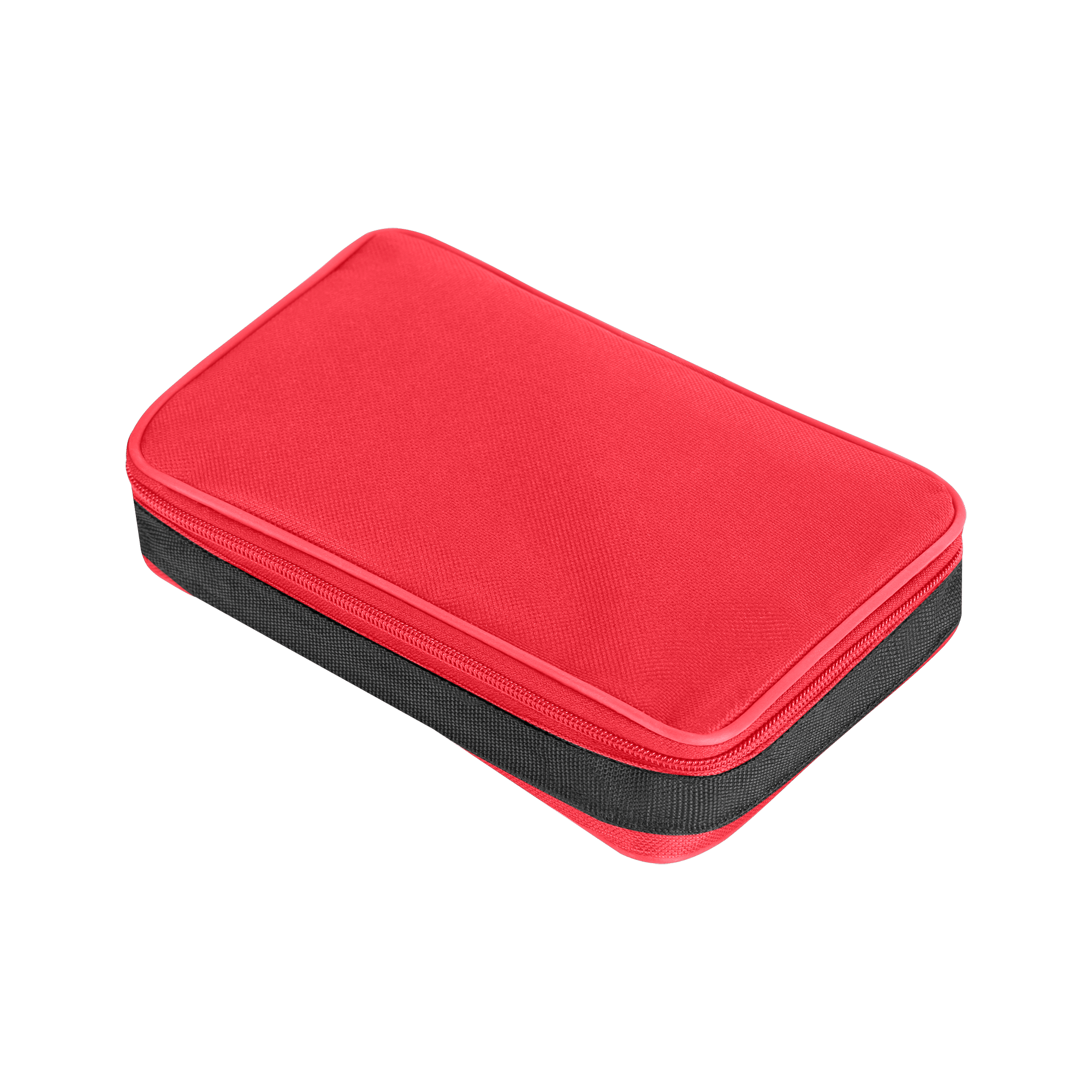

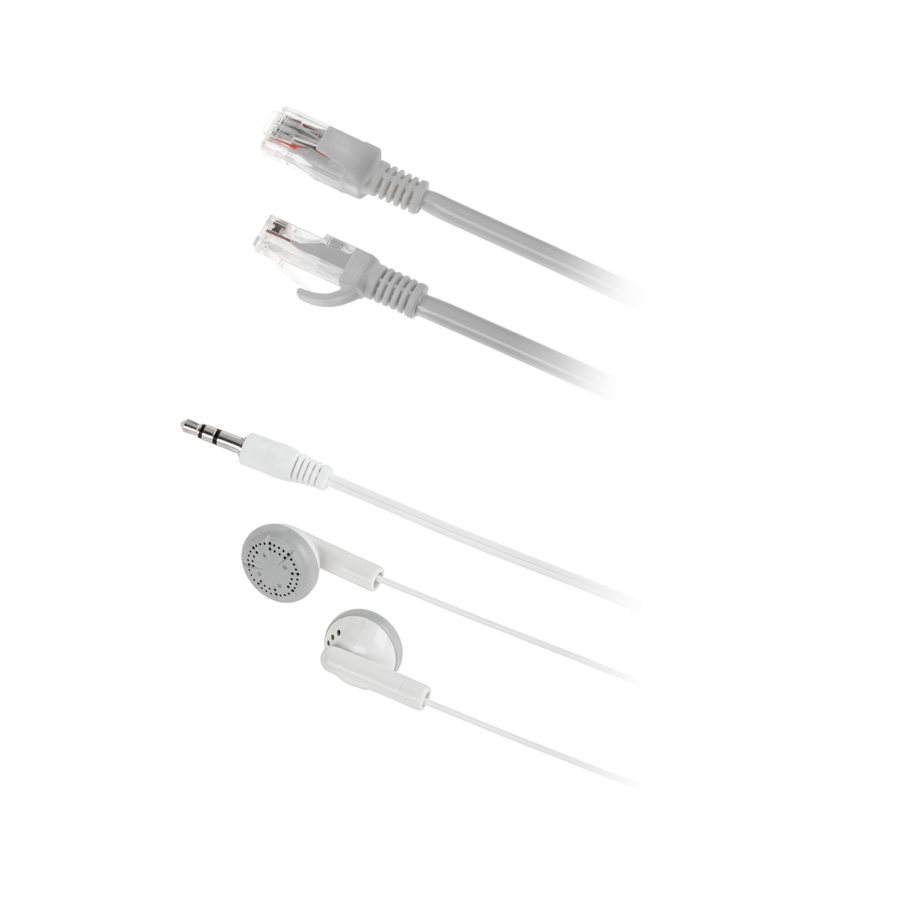

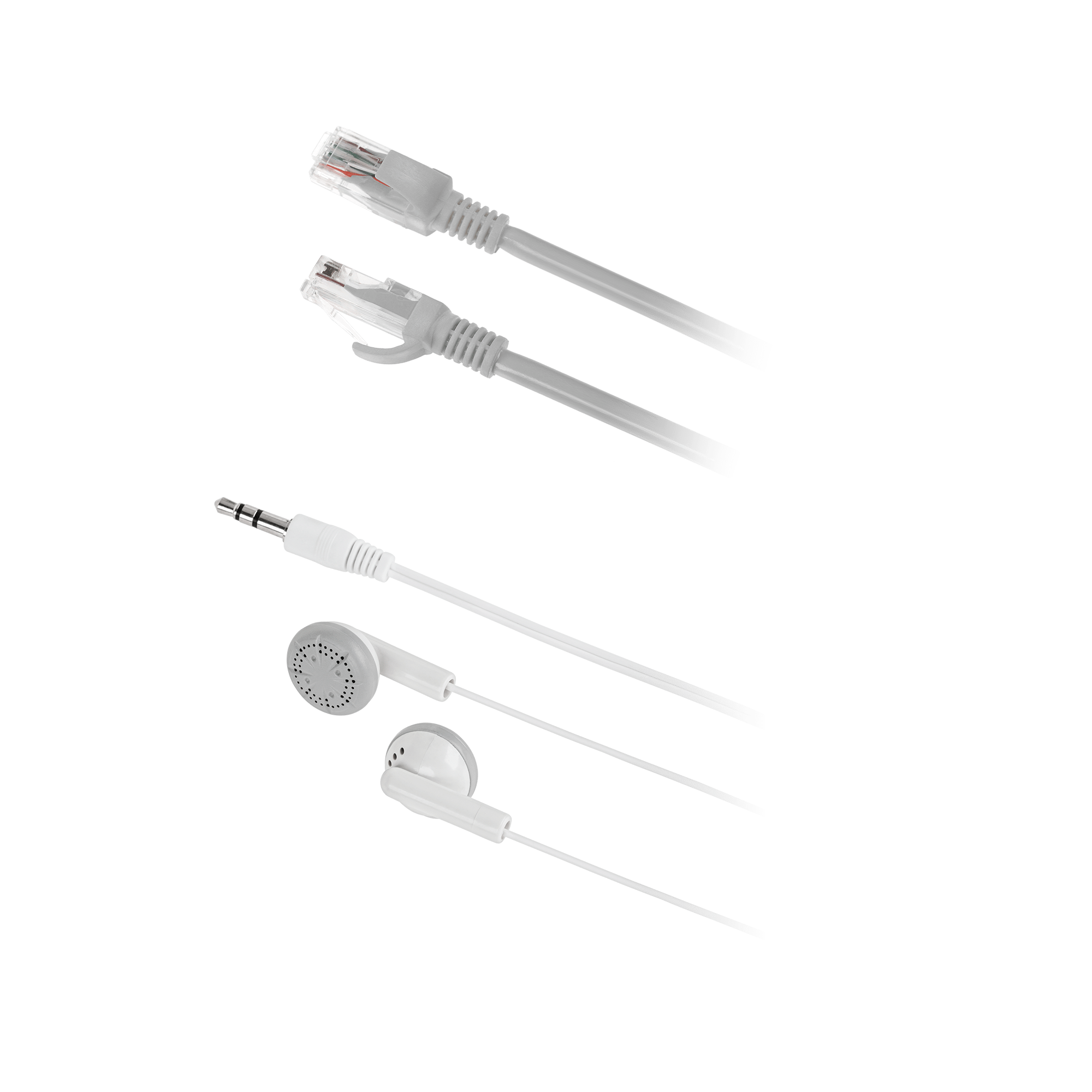

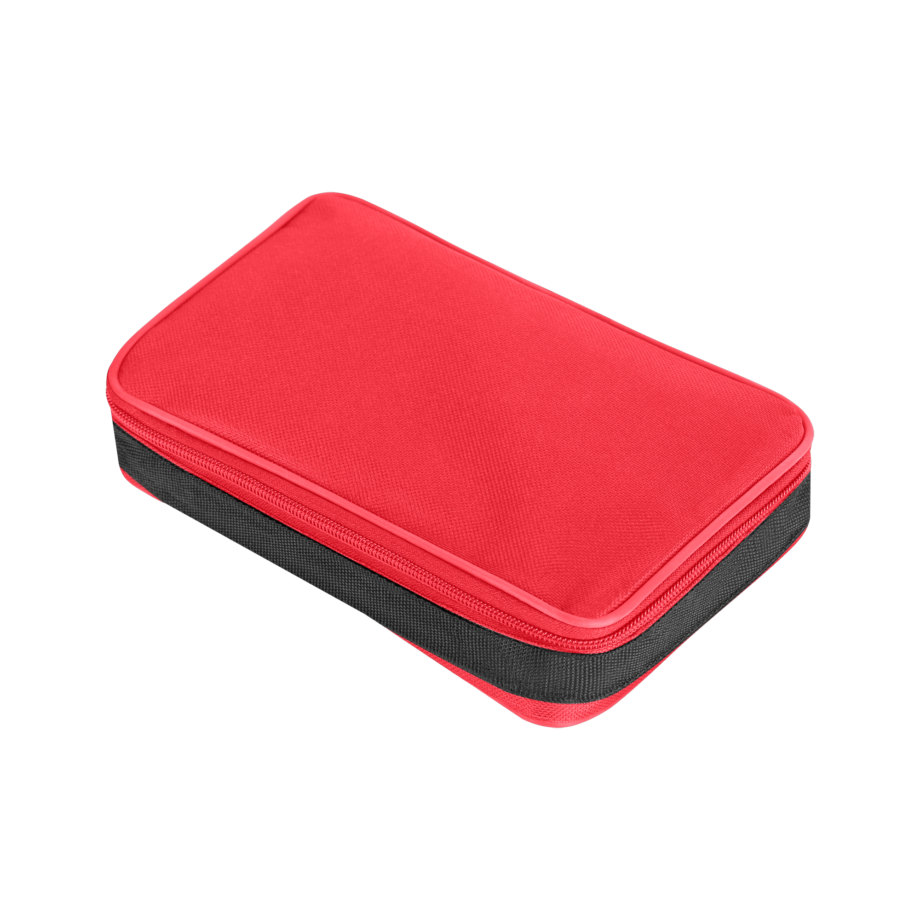

The tester comes with all the necessary accessories: transmitter, receiver, headphones and a carrying case, which makes it easy to store and transport. The included user manual allows you to quickly familiarize yourself with the functions of the device, so you can get started right away.
Durability and mobility
The RB-806R offers a maximum transmission distance of up to 3 km, which makes it extremely effective in large installations. Powered by 9V batteries, both the transmitter and receiver are lightweight and compact, making them easy to transport and use. The transmitter weighs only 123 g and the receiver 91 g, while maintaining ergonomic dimensions.
FEATURES
Locating Wanted Wires
DC Voltage Indicator Telephone Line
Cable
Test Network Cable Test Wire
Continuity Test MAIN FEATURES
Two Alligator Connectors
RJ11
Connector Speaker
Receiver
Work Light Low Battery
Indicator Maximum Transmission Distance: 3km
Maximum transmitter operating current: <9 mA
Maximum receiver operating current: <28 mA
Transmitter power supply: 9 V
battery Receiver power supply: 9V
battery Transmitter dimensions: 125 x 47 x 25 mm
Transmitter weight: 123 g
Receiver dimensions: 172 x 36 x 25 mm
Receiver weight: 91 g
Included: transmitter, receiver, headphones, case, user manual
