Description
Specification
Series:PROXIM+
Brand:Forever Light
Colour:black
Energy class:C
Color temperature:6500K
Tone:cold white
Working voltage:160 – 265V AC
Operating frequency:50-60 Hz
Current:434 mA
Power consumption:100 W
Lumens number:15 000 lm
Diodes number:168 pcs.
Diodes type:2835
Light angle:90°
Product dimensions (mm) length x width x height:205 x 32 x 38
Package dimensions (mm) length x width x height:277 x 37 x 227
Net weight:861 g
Gross weight:950 g
Material:PC
aluminum
Length:40 cm
Type of wire:H05RN-F 3×1.00mm²
Additional informations:IK07
Index of protection:IP65
Mechanical resistance class (IK)::IK07
Lifetime:30 000 h.
Working temperature:-25℃ + 40℃
Flash point:<0.5s
Warm-up time:<1s
Number of on/off:>40 000
Power factor (PF):>0,95 dla 100W
CRI (Ra) factor:> 80
Dimmer:no
LLMF:≥90%
Mercury content:0 mg

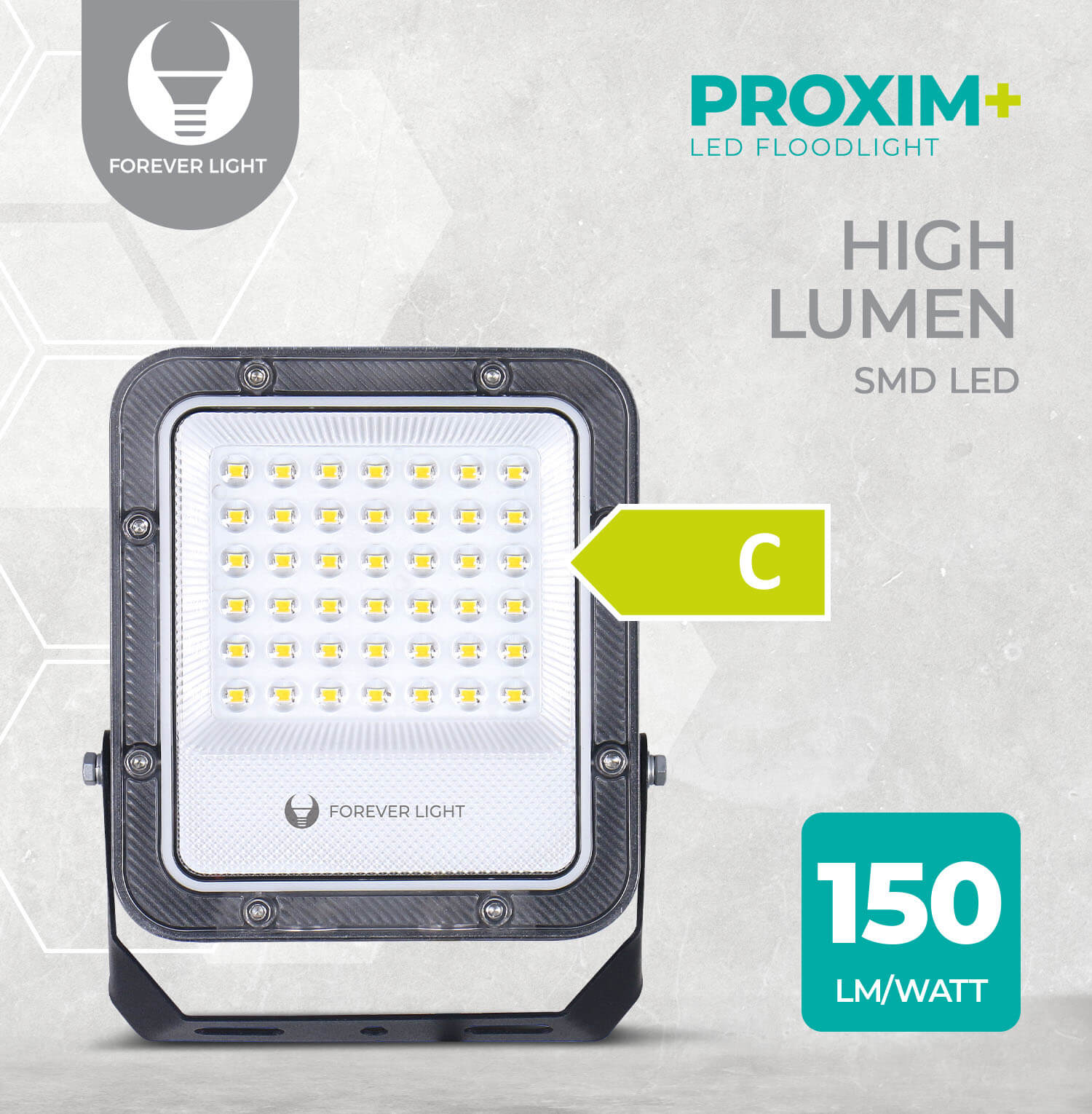

Energy Class C / Efficiency 150lm/W
The PROXIM+ LED floodlight is an excellent solution for those seeking energy-efficient and high-performance lighting. Thanks to modern components, the floodlight ensures low energy consumption while delivering a high level of brightness.

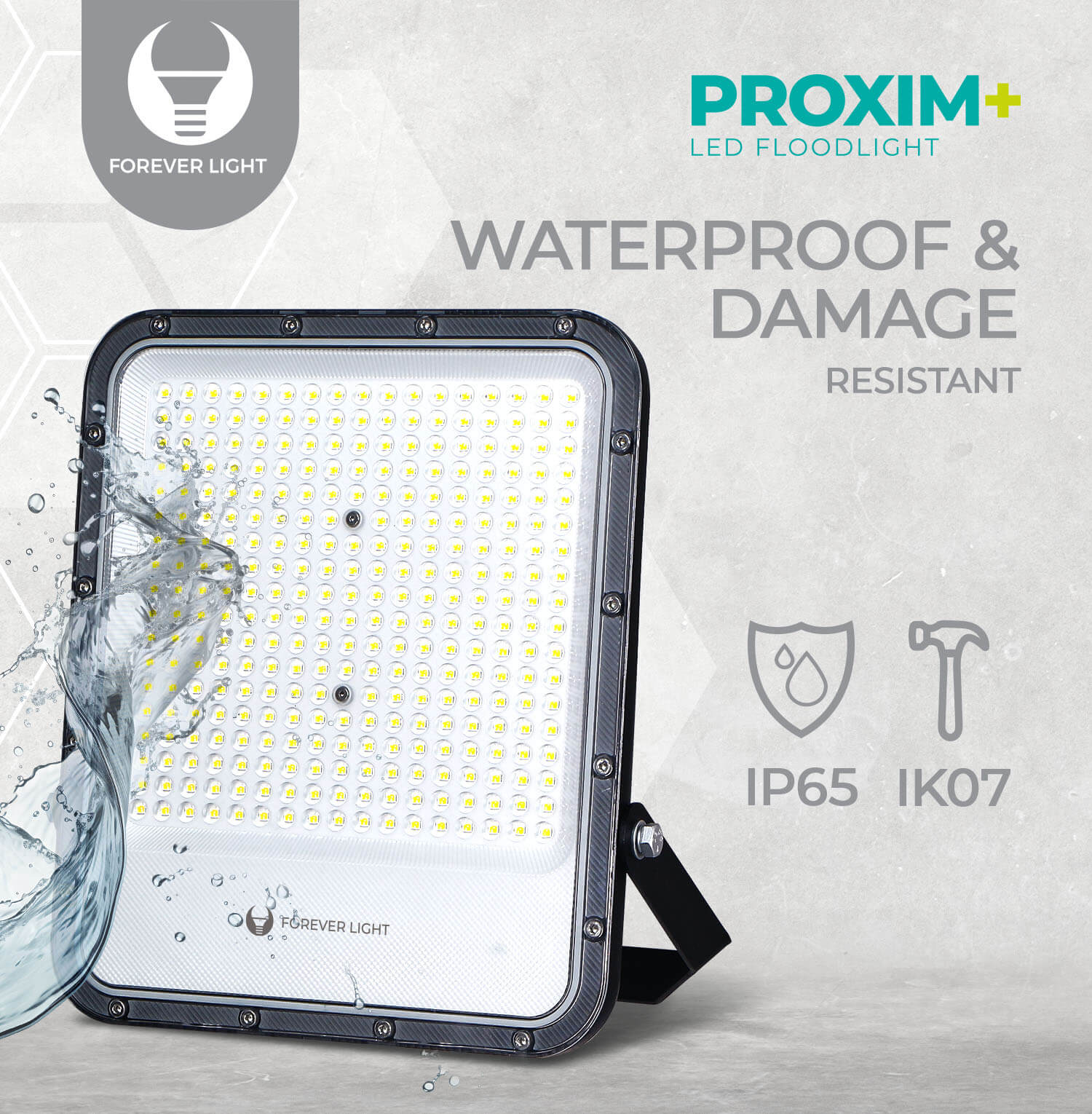

Protection IP65 and IK07

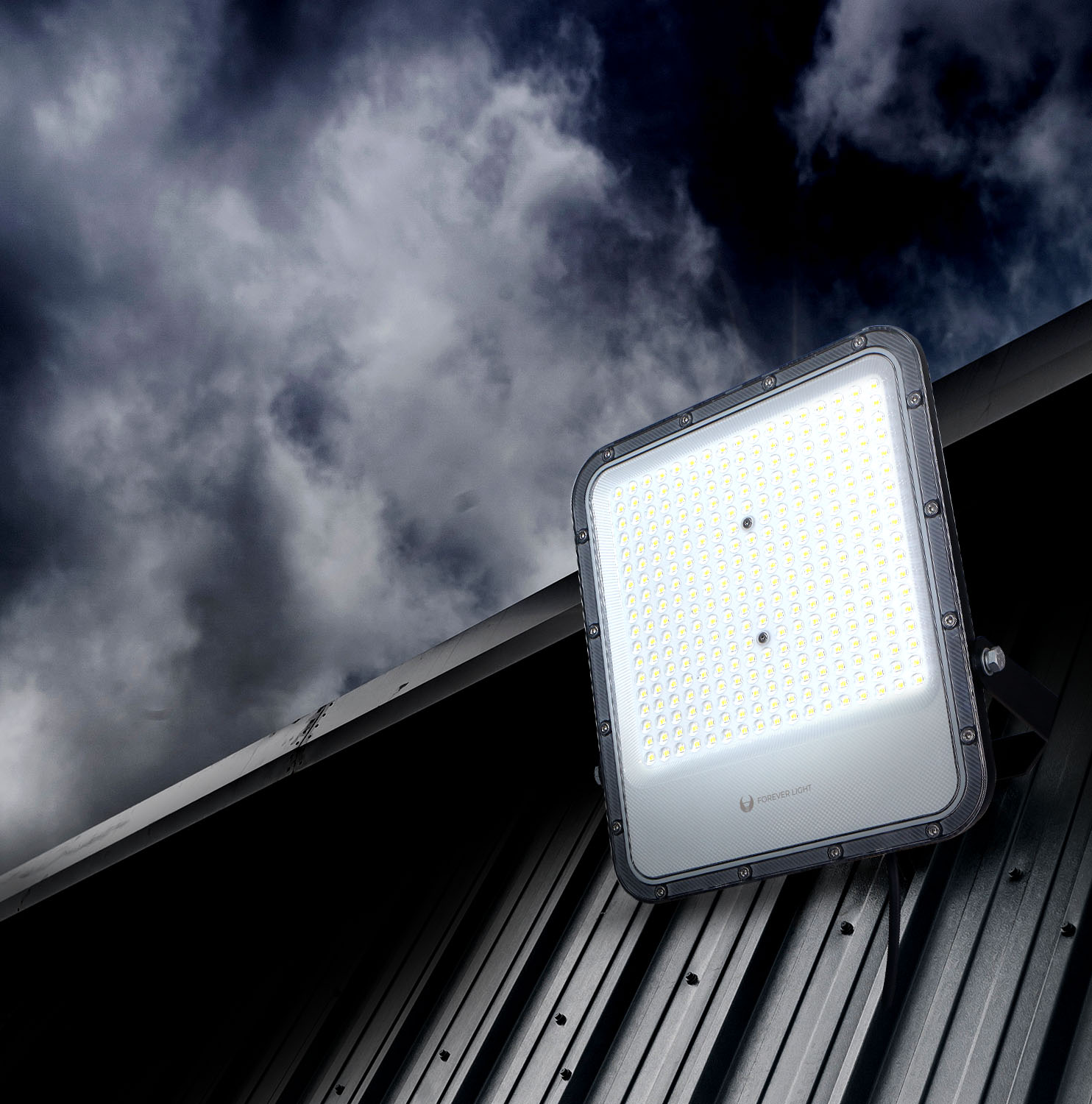

The product meets high durability standards, as confirmed by its IP65 and IK07 protection ratings. The floodlight is resistant to dust, water jets, and mechanical damage, making it ideal for outdoor and industrial applications.

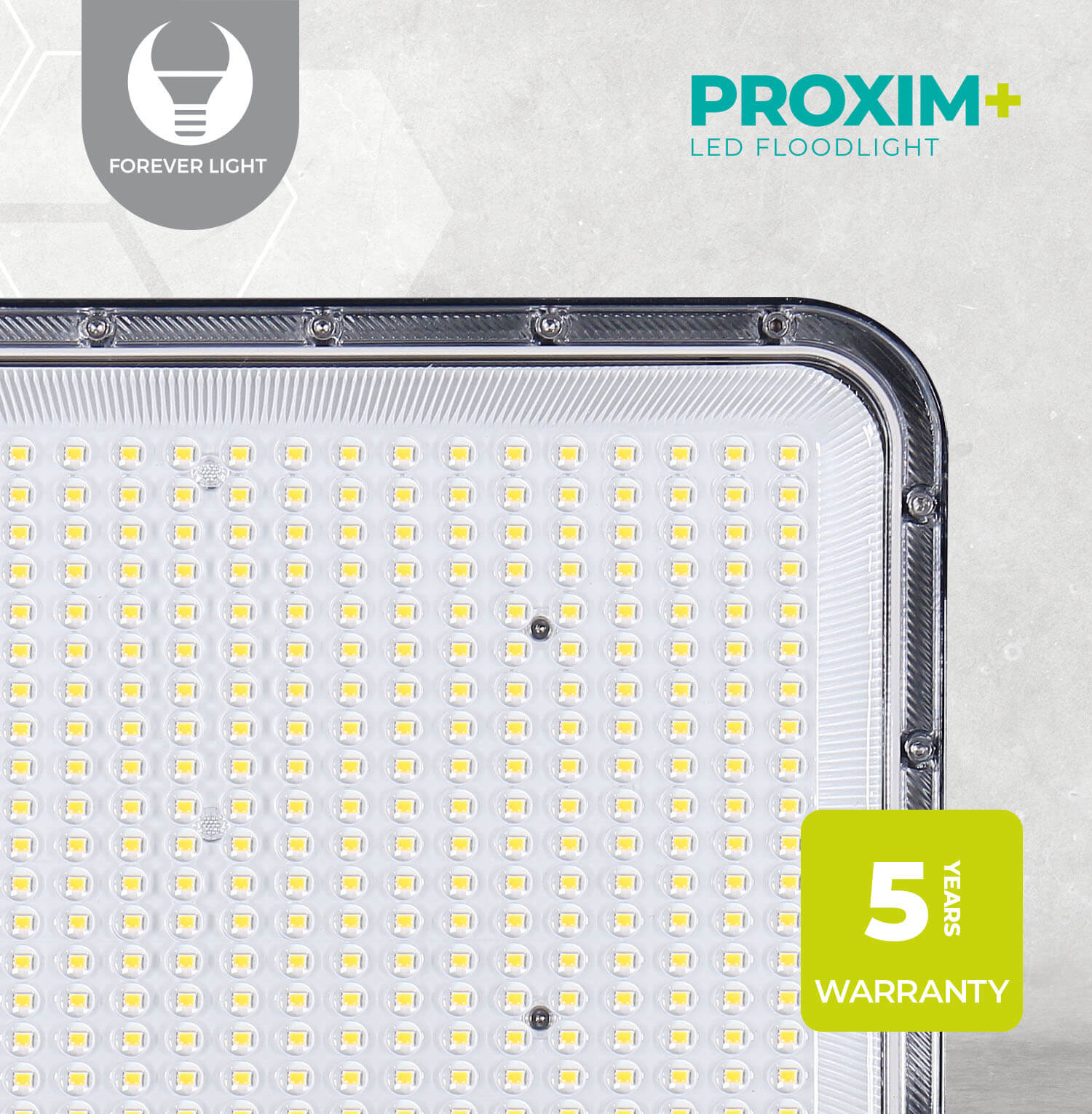

5-Year Warranty
The 5-year warranty highlights the high quality and reliability of the device, giving users confidence in its long-term performance.

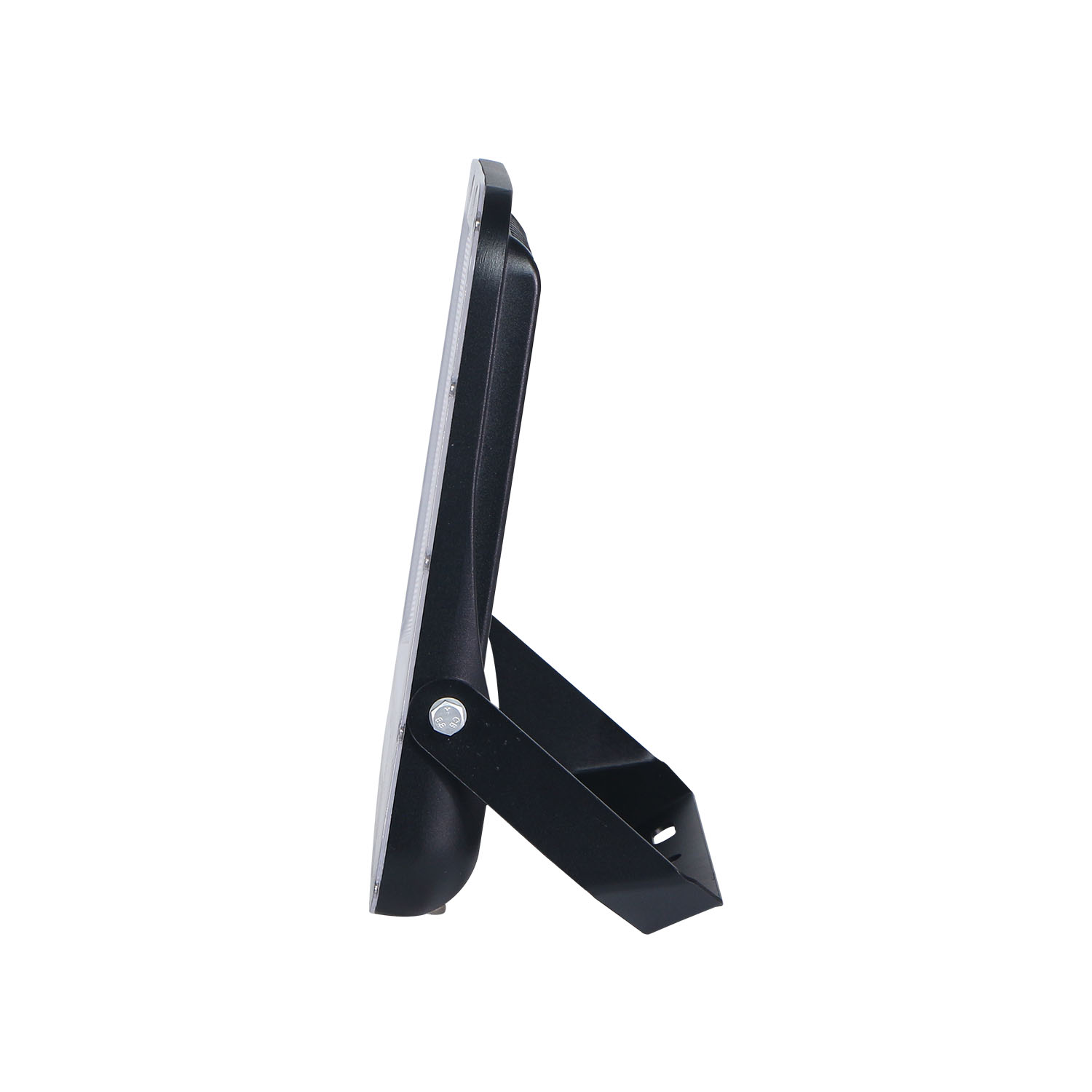

Mounting Bracket for Easy Installation – No Need to Remove the Bracket
The adjustable bracket allows for easy and stable installation on the chosen surface without the need to remove any components.

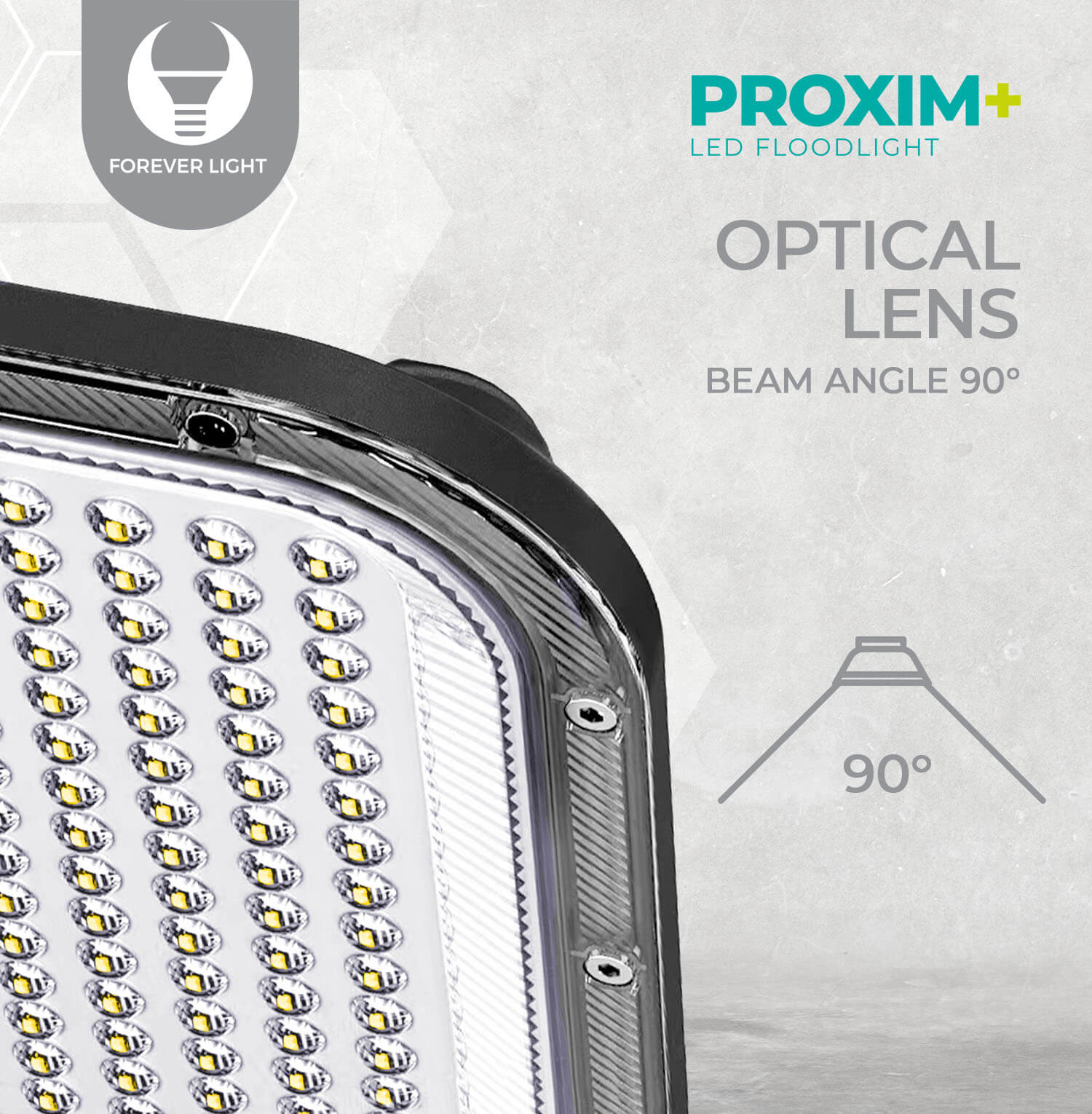

Optical Lenses
The PC layer with pre-fabricated lenses concentrate and focus the light emitted by the LED, ensuring that it is directed more efficiently toward a specific area or target. The pre-fabricated lenses, help in shaping and controlling the light output, reducing any unwanted light dispersion and maximizing the intensity in the desired direction.
Power Supply with Protection Against: Low or High Voltage and Short Circuits
The high-quality power supply is equipped with safeguards against voltage surges and short circuits, enhancing the product’s safety and durability. Additionally, the floodlight features extra protection against moisture through a valve that regulates internal pressure and temperature, preventing condensation and damage to the casing.

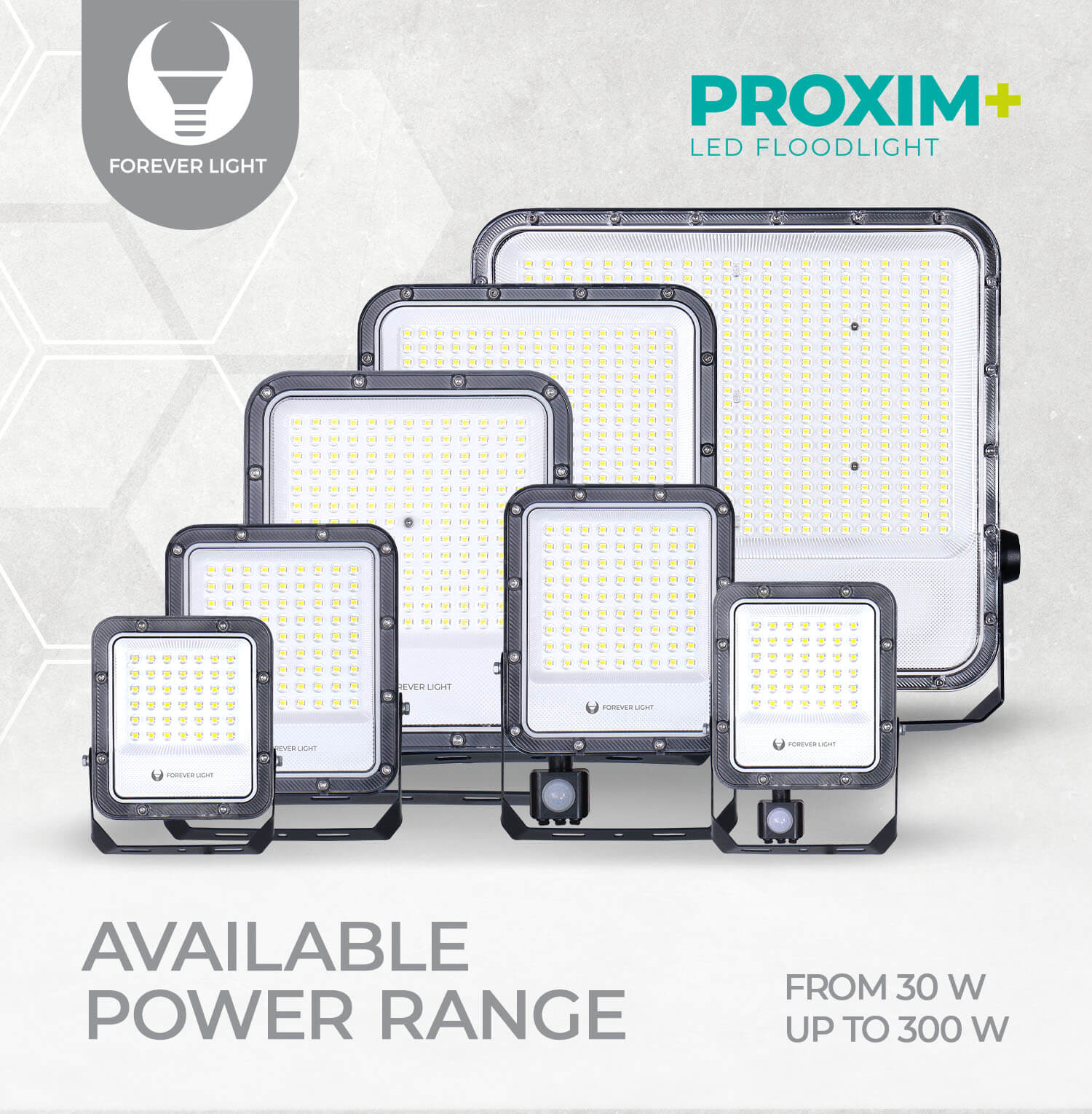

Power Options up to 300W
A variety of power options, ranging from 30W to 300W, along with the choice of light color (cool or neutral), allows the device to be tailored to individual needs. Models up to 50W also offer a motion sensor option (PIR), enhancing functionality and energy efficiency.

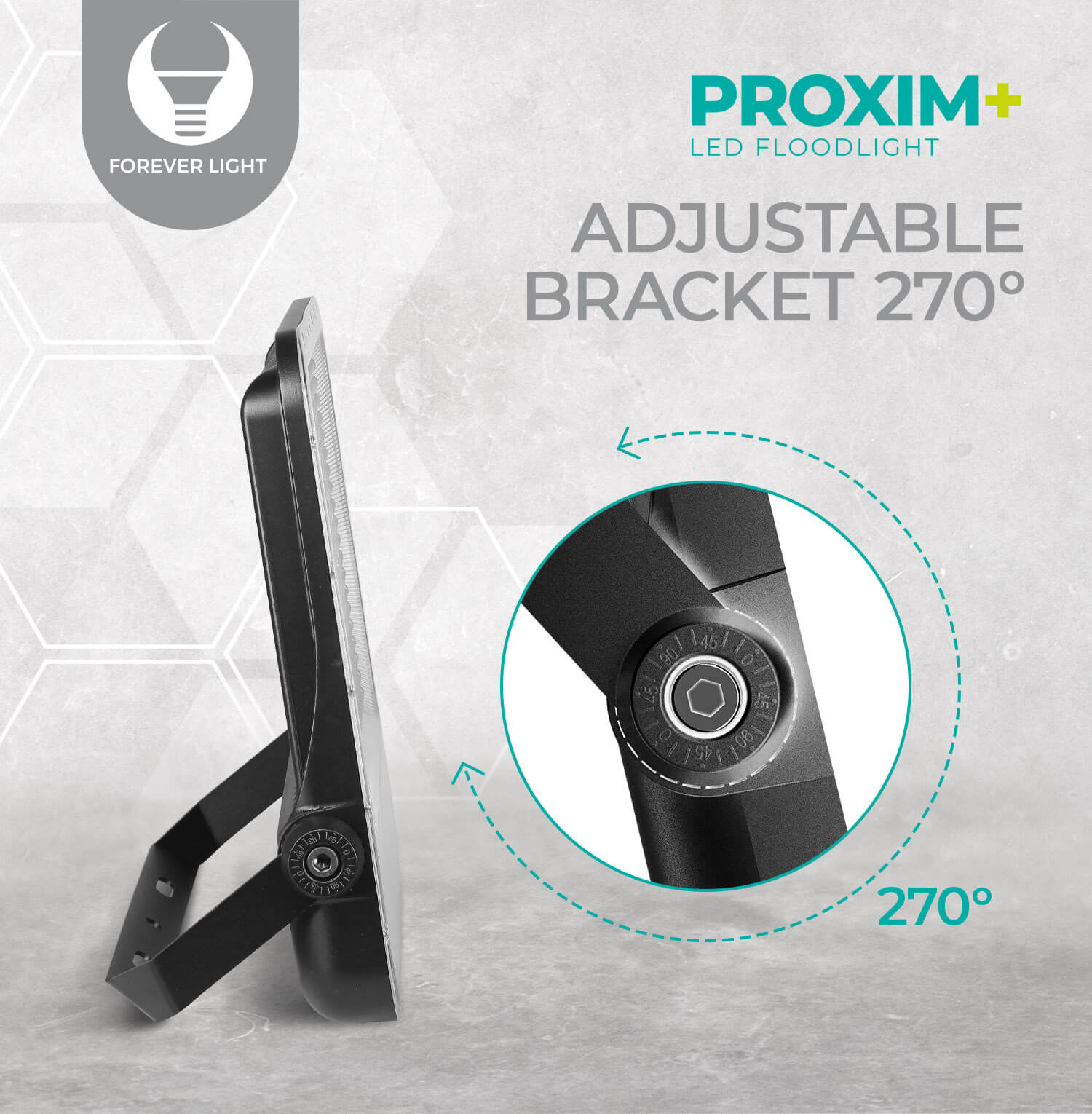

Vertical Adjustment of the Floodlight up to 270°
The wide vertical adjustment range (up to 270°) allows for optimal positioning of the light beam, even in challenging installation conditions.
*angle scale available only in 300W version
%20(1).jpg)
Valve for Regulating Pressure and Temperature Inside the Floodlight
The valve regulating internal pressure ensures extended lifespan and consistent light quality. During the heating of the power supply and lighting components, internal pressure inside the casing may increase. The valve effectively releases excess pressure, preventing the casing from losing its seal. At the same time, it eliminates moisture from the air, protecting the interior of the floodlight from condensation and maintaining its reliability.
*Available in 200W and 300W versions only
Extended Connection Cable for Installer Convenience
The extended connection cable (30 cm for 30-50W models, 40 cm for higher power models) simplifies installation and reduces installation costs by eliminating the need for additional connections.

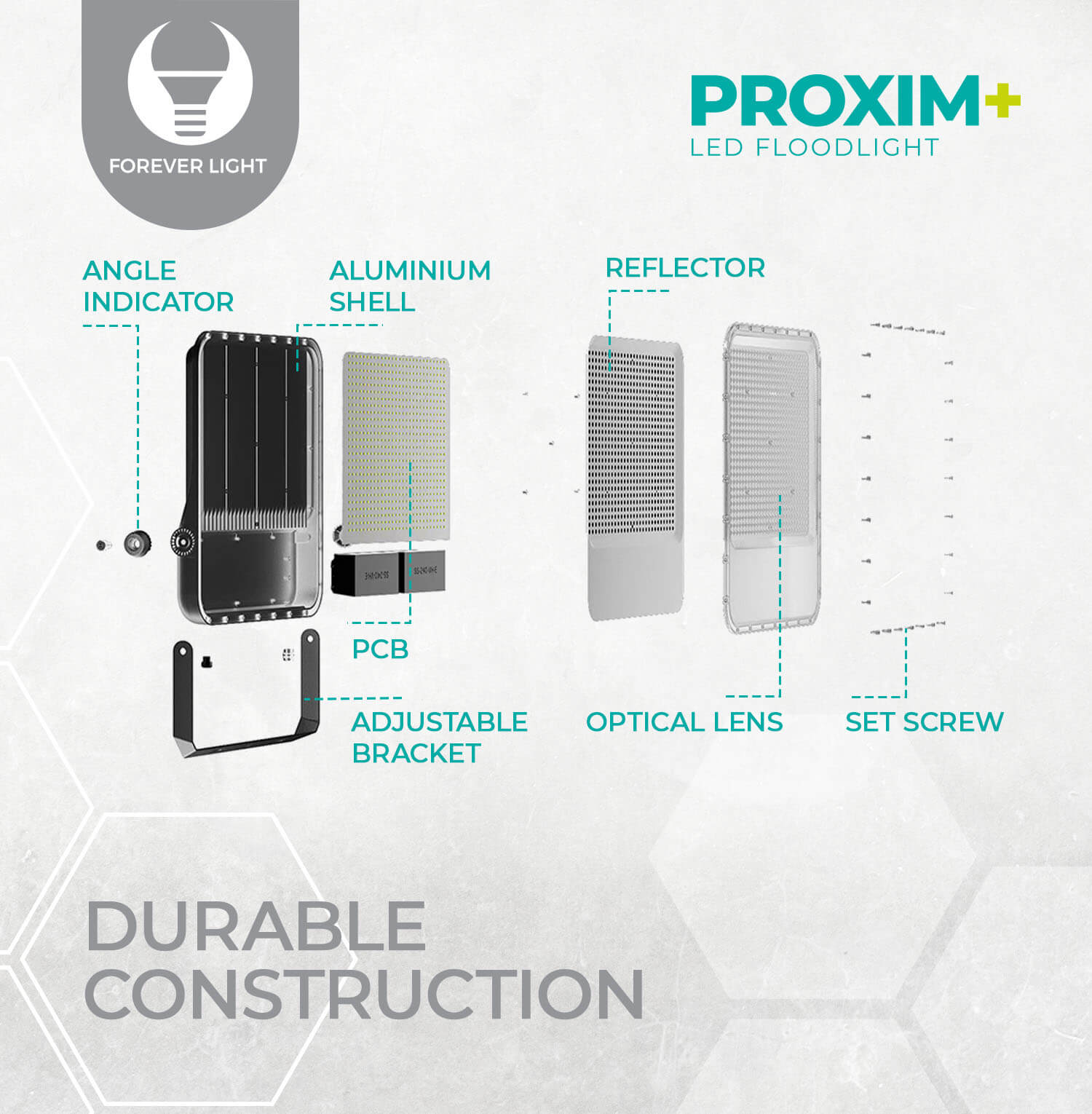

Durable Aluminum Construction
The sturdy aluminum housing ensures stable installation, long-lasting performance, and effective heat dissipation thanks to an integrated radiator.

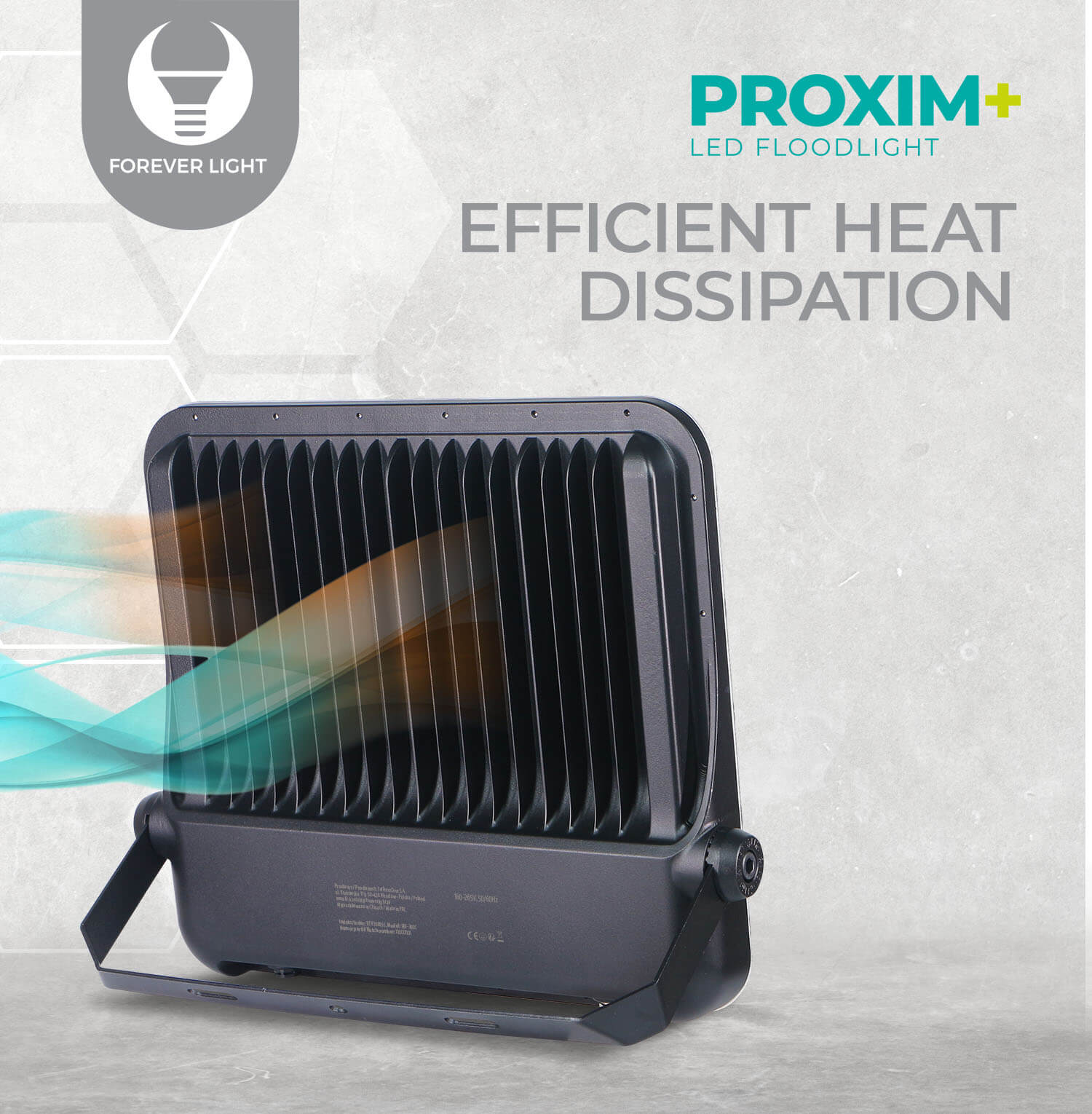

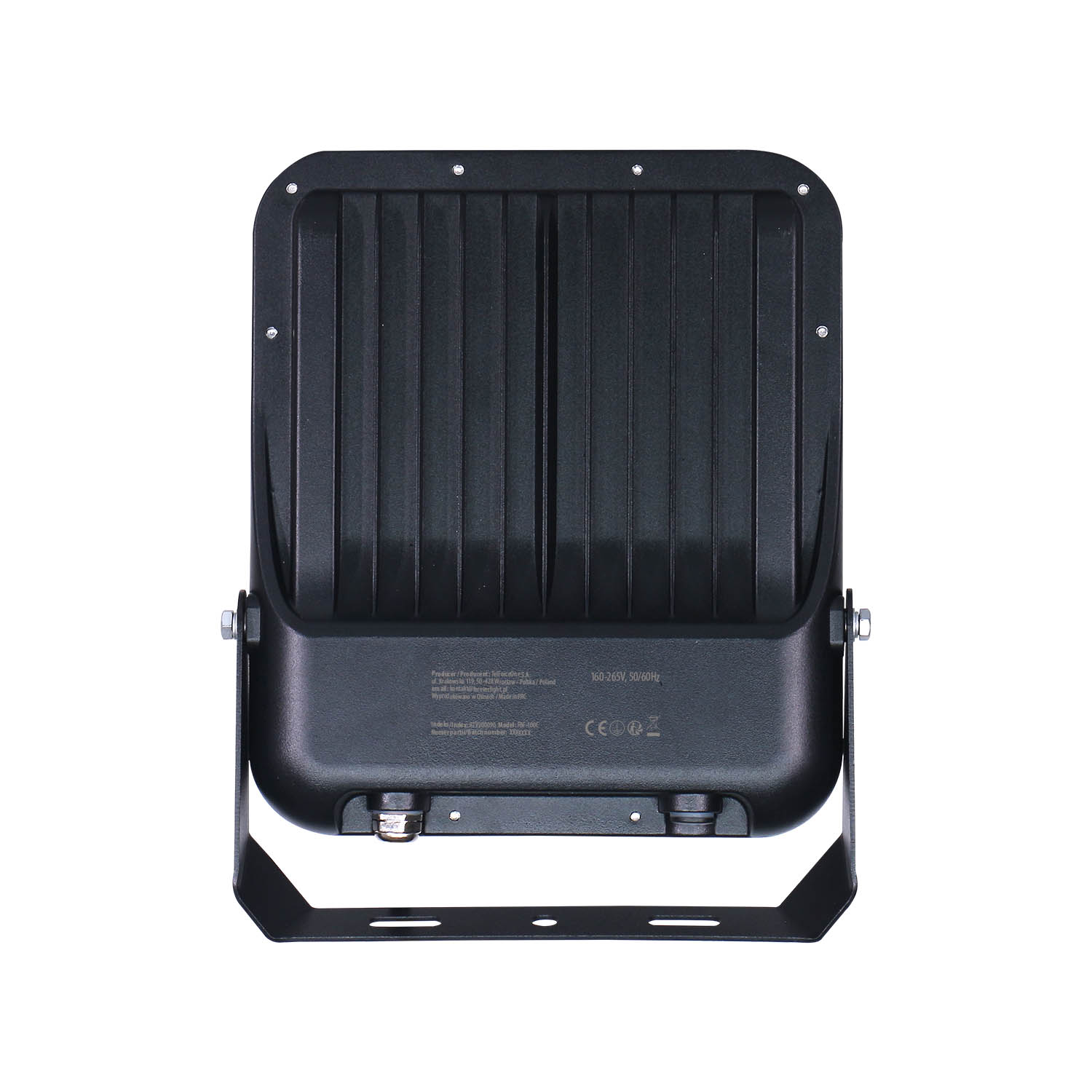

Efficient Radiator for Heat Dissipation
The radiator effectively dissipates excess heat, enhancing the floodlight’s performance and protecting its components from overheating.
The Product Meets Environmental Standards
The floodlight is mercury-free and energy-efficient, making it an ideal choice for those seeking modern and environmentally friendly lighting solutions.
